Your One-Stop For All Gate And Fence Materials
M3.NB (No Battery) Sliding Gate Operator
-23%
Tech Spec
| SKU Number | CM9-M3.NB (M3 Non-Battery Operator) |
| Gate Type | Sliding Gate |
| Max Gate Length | 26 Feet |
| Max Gate Weight | 1,800 Pound |
| Power Input | 110-120v AC, 15amp |
| System Operating Volt | 24v DC |
| Max Output Current | 30amp, Fuse: 24v DC 15amp |
| Circuit Board Ver. | CM-DC V.4.2 |
| Motor | 250w Continuous Duty |
| Gear Reducer | Gear #50 |
| Operating Temp. | -4°F to 140°F |
| Max Gate Speed | Approximately 1 Foot/Sec |
| Application | Residential/Commercial |
| Property Class | I, II, III, IV |
| Manual Release Option | Foot Pedal |
| Inherent Entrapment | Inherent Reverse Sensor (Type A) |
| External Entrapment | Photocell Sensor (Type B1) |
| Photocell Sensor | Up To 30 Feet (Included) |
| Siren Sensor | SOS12 Compatibility (Add-On Optional) |
| Knox Fire Box | Knox Products Compatibility (Add-On Optional) |
| Mobile App | SmartGate [IOS/Android] (Req. CM Camera) |
| Battery Backup | N/A |
| Solar Ready | N/A |
| Chain Size | #40 (20 Feet Included) |
| Dimensions (L x W x H) | 14.5″ x 23″ x 26″ |
| Weight | 97 Pound |
| Limited Warranty | Residential: 5 Years; Commercial: 3 Years [Read More] |
In The Box

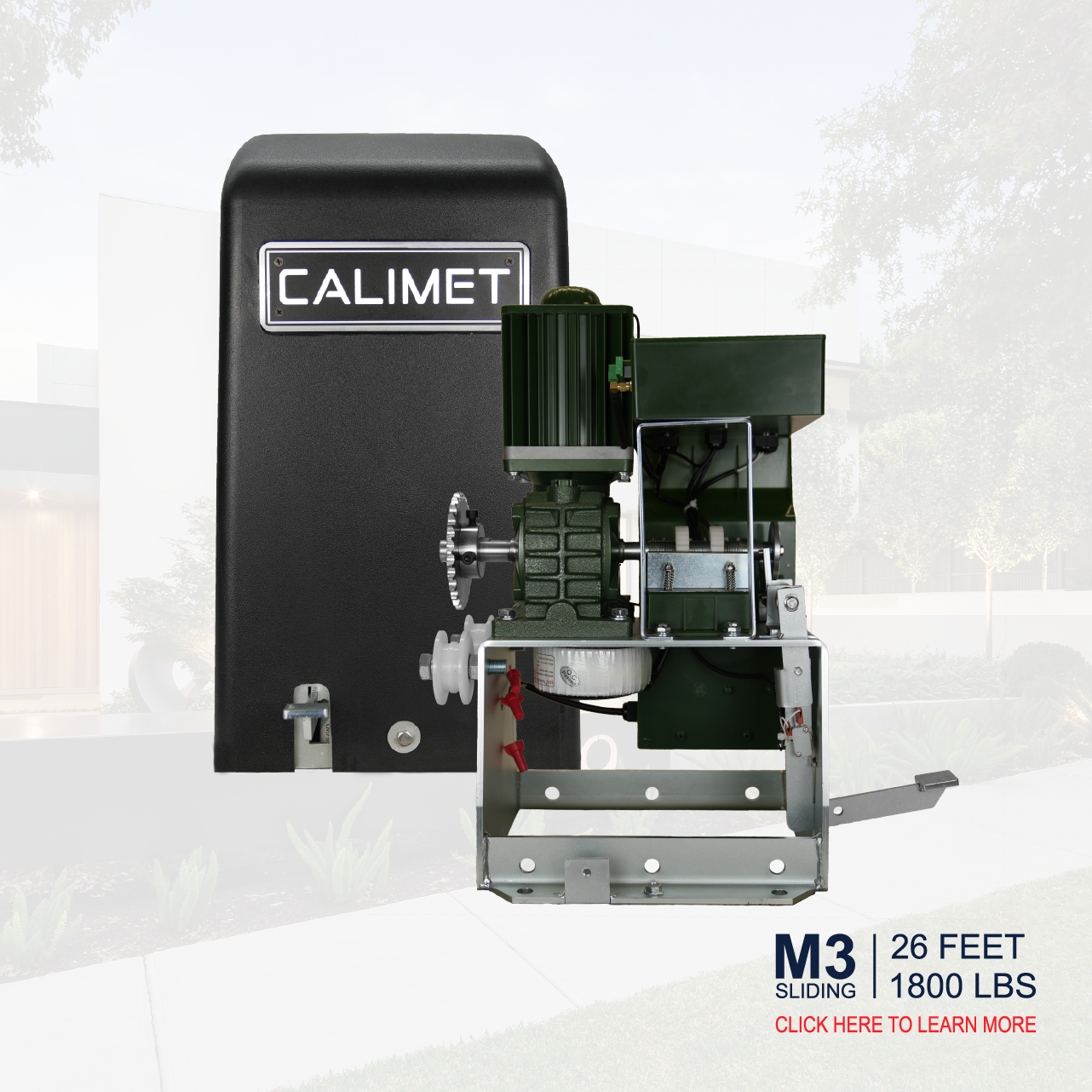

M3-DCNBQty: 01
CM9-864Qty: 02

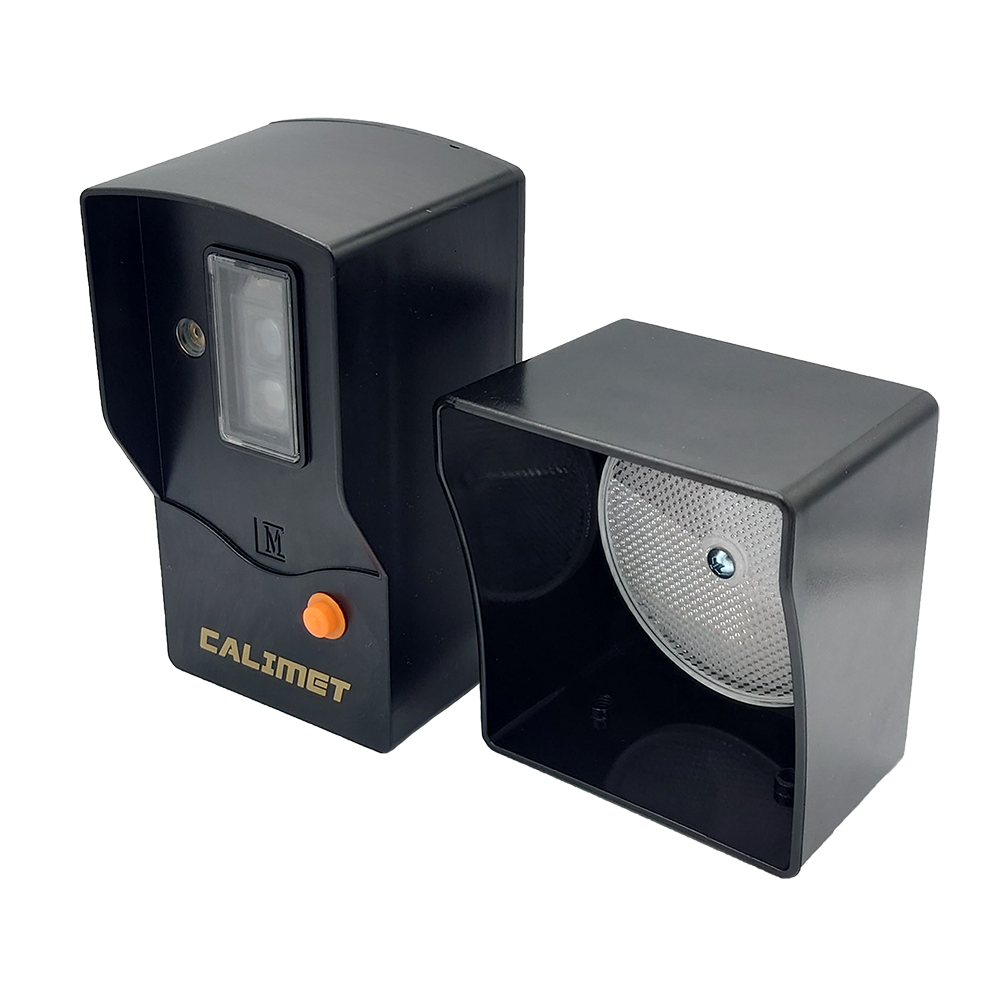

CM9-486Qty: 01

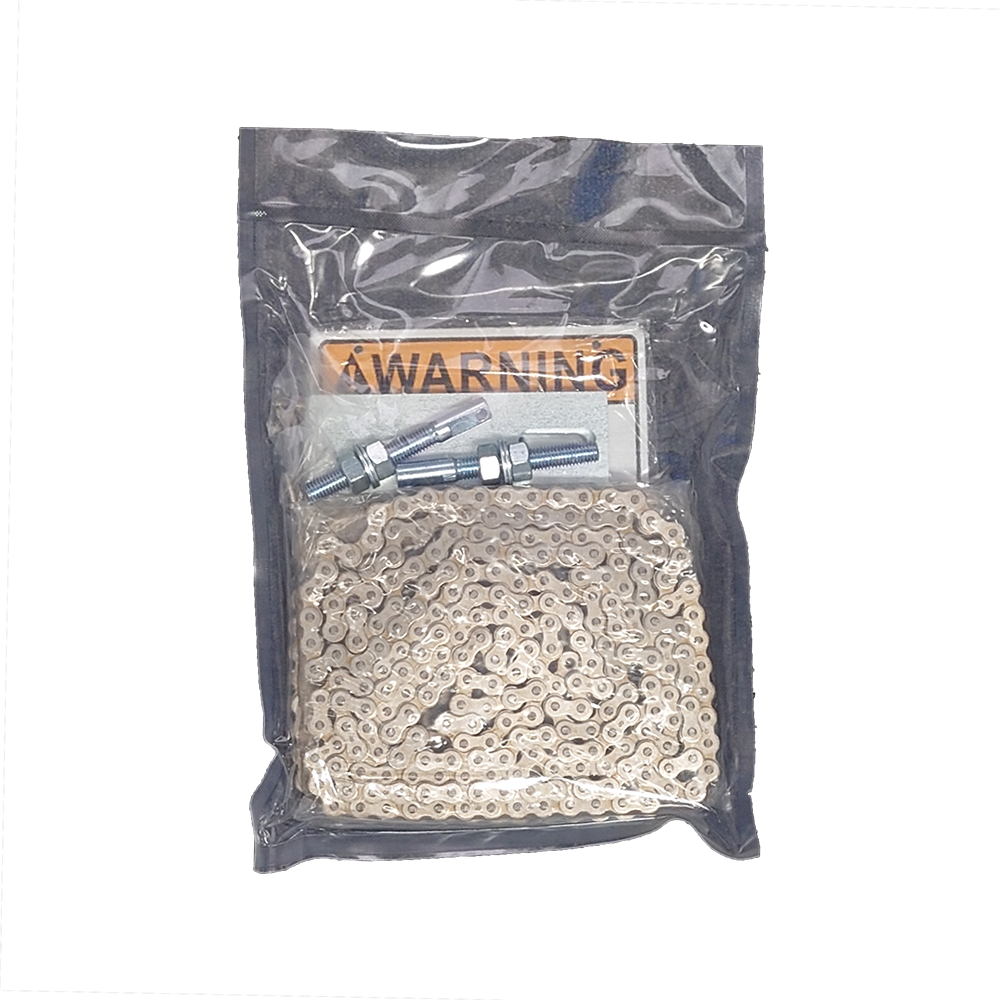

CM9-794EQty: 01

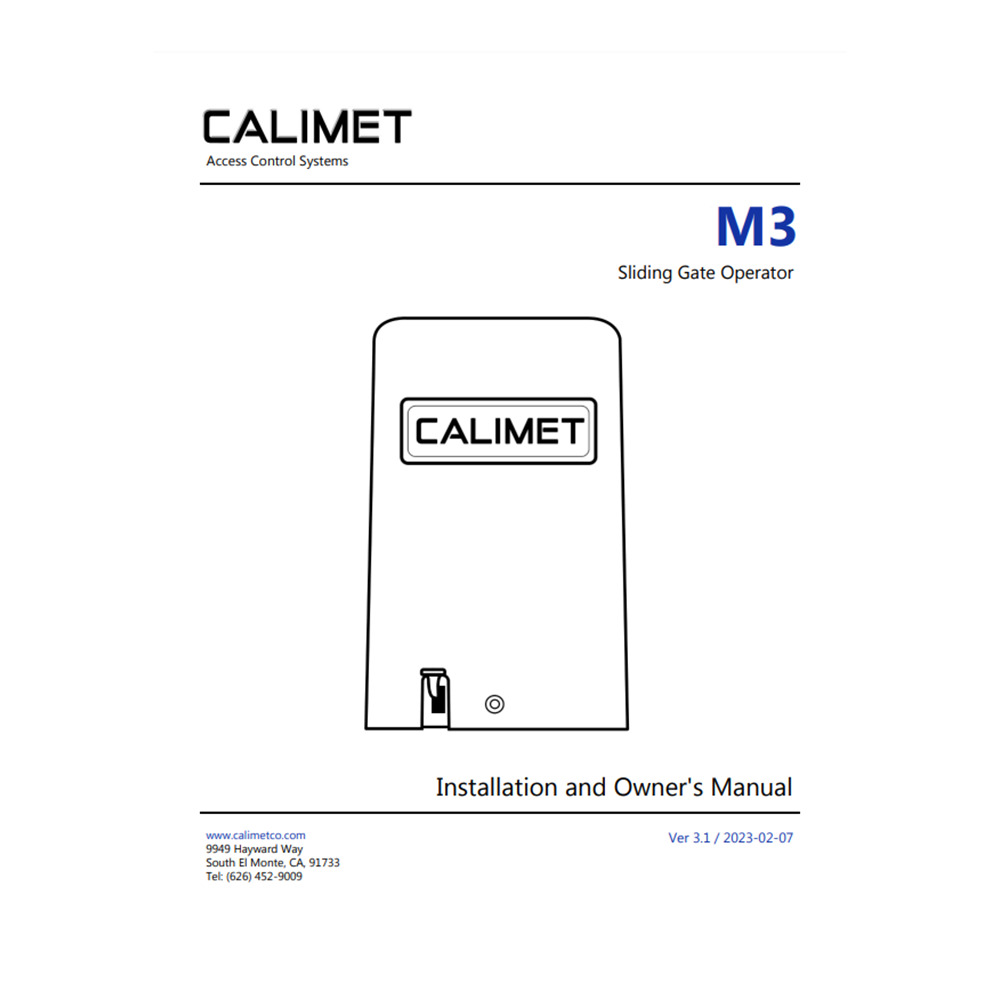

User ManualQty: 01
Warranty CardQty: 01
How To Video
Will Update Soon!
Tech Support
Address: 9949 Hayward Way, South El Monte, CA 91733
Telephone: 626.996.0128
Email: service@calimetco.com
Service Hours: Monday-Friday (7:45am to 4:30pm)
User Manuals: English | Spanish | Chinese
FAQs: Link
M3.NB (No Battery) Sliding Gate Operator
Original price was: $2,310.00.$1,790.25Current price is: $1,790.25.
Add to cart
Buy Now
